Wafer Cream Spreading Machine

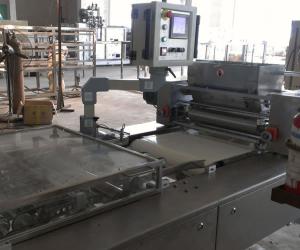

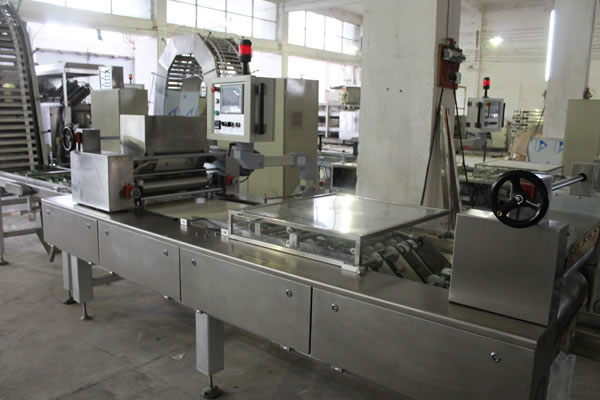

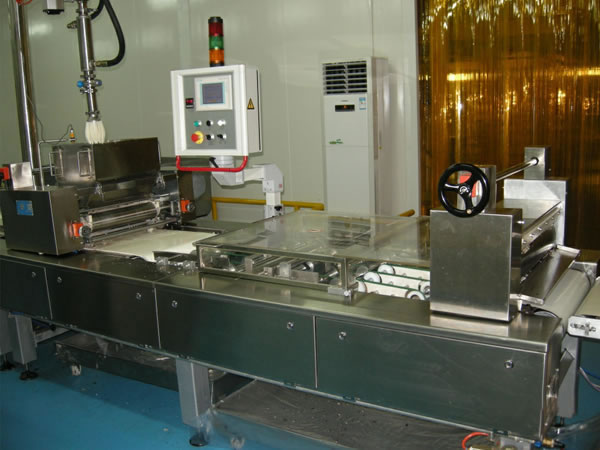

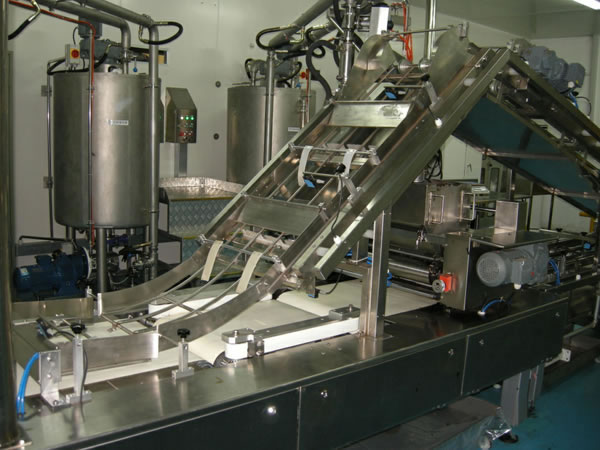

The wafer cream spreading machine plays a very important role in stacking wafer sheets and cream layers. More specifically, it spreads cream on cooled wafer sheets uniformly, and then presses slightly to combine them together.

Feature
1. The machine frame, constructed from stainless steel, is of cabinet structure to keep cables and pneumatic components well sealed in the cabinet for the purpose of water and dust prevention.

2. The patented laminating device adopts a rotary plug-in structure, and the laminating step is not limited by cream thickness or wafer sheet number. Moreover, our cream spreading machine is equipped with smooth laminating roller, and this roller is made from stainless steel to realize fast and easy clean.

3. Due to its composite structure, the spreading head allows simple assembly and disassembly, while there is an automatic temperature control device inside the spreading roller.

4. For this cream coating machine, both wafer number and cream amount could be adjusted according to practical needs, while the thickness of each cream layer is also adjustable.

Technical Data
1. High-End Wafer Cream Spreading Machine: TCH Film Spreading Machine

a. Size: 4000×1200×1370mm
b. Dynamic power: 2.99kW (0.75kW for spreading belt, 0.75kW for spreading roller, 0.37kW for separation, 0.37kW for lamination, 0.75kW for pressing)
c. Heating power: 1.5kW (0.5kW×2 for spreading roller, 0.25kW×2 for spreading bucket)
d. Wafer pressing mechanism: Double roller
e. Raw material: Food grade PU belt and 304 stainless steel for parts that will come into contact with wafer or cream
f. Function: This stainless steel food processing machine is outfitted with a PLC, and its touch screen allows data display and parameter setting. Moreover, it will stop delivering wafer books to the next production step if there is a fault with downstream machine. Instead, it will collect wafer books under this condition.

2. Standard Wafer Cream Spreading Machine: TC4 Contact Spreading Machine
a. Size: 3000×1200×1200mm
b. Dynamic power: 2.62 kW (0.75kW for spreading belt, 0.75kW for spreading roller, 0.37kW for lamination, 0.75kW for pressing)
c. Heating power: 1.5kW (0.5kW×2 for spreading roller, 0.25kW×2 for spreading bucket)
d. Wafer pressing mechanism: Double roller
e. Raw material: Food grade PU belt and 304 stainless steel for parts that will come into contact with wafer or cream
f. Function: This wafer production equipment uses a touch screen to reveal data and set processing parameters, and it also has a PLC. Our product would stop wafer delivery when there is a failure in the production line, and it will collect wafer books under this condition.

3. Economical Wafer Cream Spreading Machine: TW1 Contact Spreading Machine
a. Size: 3300×1200×1200mm
b. Dynamic power: 1.87 kW (0.75kW for spreading belt, 0.75kW for spreading roller, 0.37kW for pressing)
c. Heating power: 1.5kW (0.5kW×2 for spreading roller, 0.25kW×2 for spreading bucket)
d. Wafer pressing mechanism: Double roller
e. Raw material: Food grade PU belt, galvanized steel channel for machine frame, stainless steel for exterior decoration plate, 304 stainless steel for parts that will come into contact with wafer
f. Laminating device: Reciprocating mechanism driven by cylinder, 2-5 layers of lamination are available
g. Function: Our wafer cream spreading machine will stop transporting wafer biscuits when there is a failure in downstream machines to avoid misoperation.
