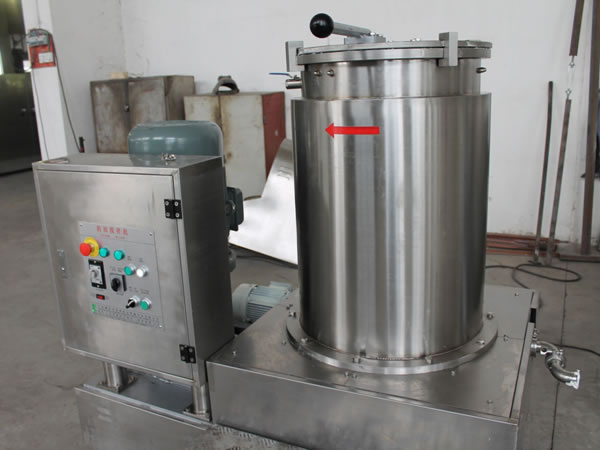

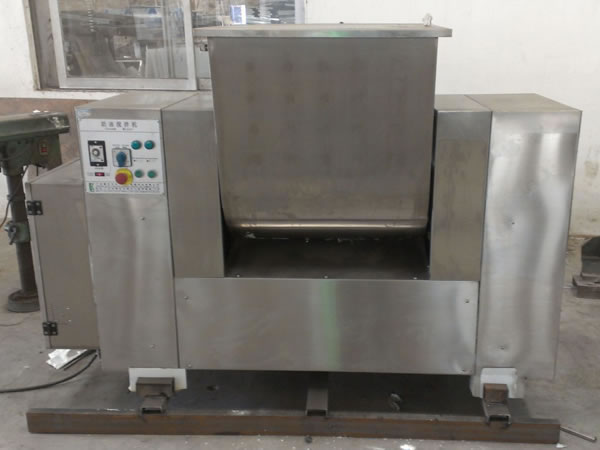

The wafer cream mixer is a stainless steel blender used to create cream for the wafer production line. Our product makes use of a 4.5kW motor to drive two sets of mixing paddles to rotate in the opposite directions, and the tipping system, which is utilized to discharge cream from this cream mixing machine, is powered by a 0.55kW motor. Technically speaking, mixing time shall be determined according to the composition of cream.
Safety Consideration
Our food processing machine is equipped with a safety mechanism, which means its mixing paddles will stop rotating when the top cover of this cream agitator is opened.
Technical Data of Wafer Cream Mixer
1. Size: 1840×850×1350mm
2. Weight: 1000kg
3. Total power: 5.05kW (3/4.5kW for mixing motor, 0.55kW for SEW/ABB tipping motor)
4. Rotating speed: 1400rpm and 700rpm
5. Mixing tank: 304 stainless steel with two layers of thermally insulated jackets
6. Mixing paddle: 2Cr13 stainless steel
7. Machine frame: Carbon steel with exterior decorative plates made from 304 stainless steel
8. Heating/cooling water jacket: Watertight test is a must, and the test pressure is 0.05MPa.
9. Other parts: One cream trolley and one cream shovel
