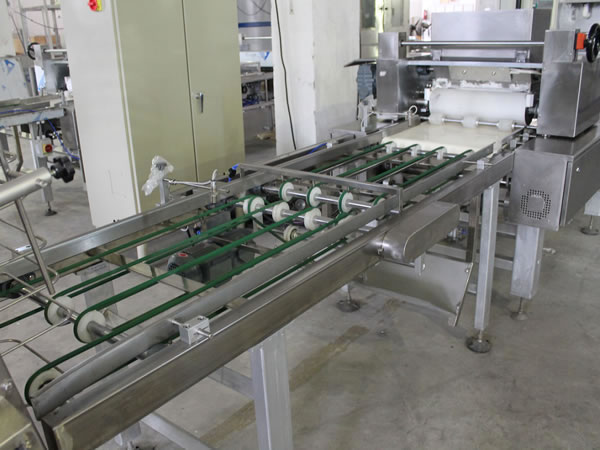

Our wafer sheet picking machine is also referred to as a wafer collecting machine, because it is designed to collect wafer sheets under some emergent conditions. For example, when cream spreading machine, wafer cooling machine or any other machine of the wafer production line fails to work temporarily, this wafer sheet picker receives relevant signals sent by the PLC, and then automatically collects qualified wafer sheets that are released by the baking oven. After the fault is solved, these qualified wafer sheets will be delivered for production.
Technical Data of Wafer Sheet Picking Machine
1. Size: 2000×700×760mm
2. Power consumption: 0.18kW
3. Power supply: 380V/3Ph/50Hz (SEW)
4. Air consumption: 0.05m3/min/0.8MPa (FESTO)
5. Raw material: Stainless steel for machine frame, 304 stainless steel for components that will come into contact with wafer sheets during working, food grade PU belt
6. Major function: Wafer sheet collection if downstream machine fails, wafer sheet detection and collection if wafer sheets are not complete
