Series 3: Wafer Production Line with Large Production Capacity
For wafer production lines that have 63, 65, 69 or 75 moulds, they are highly efficient production equipment and are considered to be of large production capacity. More specifically, their production capacities are 5.33 tons/day, 5.5 tons/day, 5.88 tons/day and 6.84 tons/day as the mould number increases.

These wafer production lines are upgraded on the basis of traditional models to better meet the market demand, and they are able to provide stable output after 8 years of continuous technical development. As a result, they are not only well sold in China, but are also taking higher and higher market share on the global market.

Recommended User
1. Medium and large-sized enterprise with sufficient fund
2. Wafer biscuit manufacturers with mature and independent sales channels
3. Investors that are aware of and sensitive to market change
4. Factories that have relevant manufacturing experience and have requirements about production capacity
5. Investors that believe these production lines match well with their sales and production plans

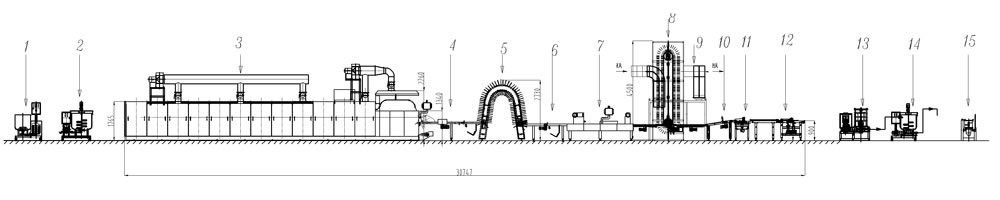

Standard Configuration

① Wafer Batter Mixer
② Wafer Batter Mixing Tank
③ Wafer Baking Oven
④ Wafer Sheet Receiving Machine
⑤ Wafer Sheet Receiving Machine
⑥ Wafer Sheet Picking Machine
⑦ Wafer Cream Mixer
⑧ Wafer Cooling Machine

⑨ Refrigeration System
⑩ Wafer Belt Conveyor
⑪ Wafer Cutting Machine
⑫ Wafer Separator
⑬ Wafer Cream Mixer
⑭ Cream Storage Bucket
⑮ Wafer Chip Smashing Machine for Recycling

Feature
1. Stable output: 222kg/h for 63-mould type, 229kg/h for 65-mould type, 245kg/h for 69-mould type, 285kg/h for 75-mould type
2. Standard baking plate: 470×325mm with pattern size of 2.5×2.5×0.5mm
3. Large baking plate: 500×350mm with pattern size of 3.0×3.0×0.75mm
4. Wafer biscuit weight: 50-60grams/piece (32-38 pieces/minute)
5. Wafer biscuit size: 464×321mm
6. Effective cutting size: 456×315mm
7. Archway type wafer cooling machine: This beautiful machine cools a large number of wafer biscuits simultaneously, and operators could walk under it.
8. High degree of automation: The batter feeding amount, baking temperature, production speed and other parameters are automatically controlled, while PROFIBUS DP technology is also adopted. These wafer production lines just require 5 operators for normal working.
9. Compact structure: Requires little floor area
10. Hygiene working: Components that will come into contact with food are made from 304N stainless steel.
