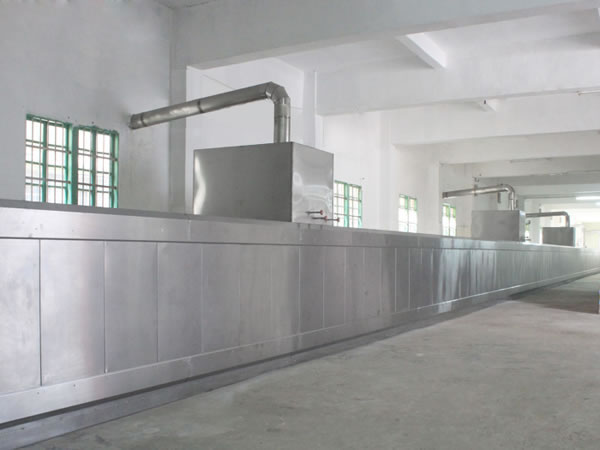

The KHG-69 boat wafer baking oven is an indispensable device for a boat wafer production line, and it uses LPG to heat up baking plates as controlled by a PLC. This gas-heated oven is utilized to automatically spread wafer batter into moulds on the baking plate, and heat these biscuits until they are well baked and delivered to the next step. In addition, there is an automatic waste cleaning device under the boat wafer baking stove.
Major Components
1. PLC: Mitsubishi
The PLC has a PID controller which is employed to automatically control the baking temperature, and all the signals are collected by a Raytek infrared temperature sensor.
2. Touch Screen: Hakko
Thanks to this touch screen, operators could observe running status of our boat wafer baking oven, and they are also allowed to set processing parameters.
3. AC Contactor: Schneider Electric (China)
4. Running Wheel Bearing: SKF6305/VA201 (high temperature)
5. Main Pneumatic Parts: FESTO
6. Gear Motor: SEW
Technical Data of Boat Wafer Baking Oven
1. Baking plate number: 69 pairs
2. Baking plate size: 470×325mm
3. Biscuit shape: Boat
4. Max. LPG consumption: 21m3/h
5. Max. LNG consumption: 63m3/h
6. Max. biscuit output: 450 pieces (24 pcs/mould × 23 moulds/minute)
7. Main motor: 4kW, 380V/50Hz (SEW)
8. Draught fan for blending fuels: 3kW, 380V/50Hz (made in China)
9. Batter feed pump: 0.55kW, 380V/50Hz (SEW)
10. Compressed air consumption: 0.9m3/min/0.6MPa (FESTO)
